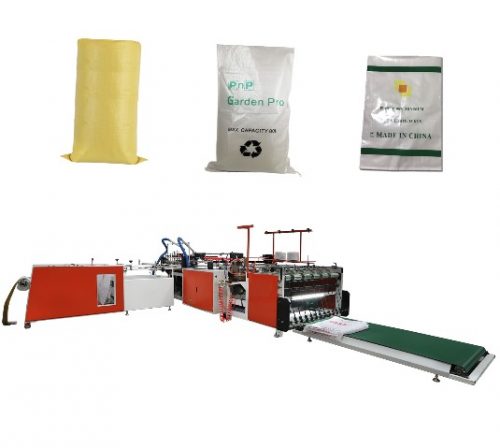

Auto cutting and sewing machine for woven bag or printing laminated bag

This machine is suitable for normal bag ,normal printing bag and laminated PP woven sack bag ,rice bag . With auto loading ,EPC ,Cutting ,sewing and bag collect .

Performance and Characteristics:
1. It can automatically accomplish the fixed-length thermal cutting and the bottom hemming and printing for the woven cloth in roll in one time, which saves labor forces.
2. It adopts the servo motor to drive, and the optical code meter to count the length, which precisely controls the length of bags.
3. After the heat cutting, the plackets of bags are easy to open, not conglutinated.
4. Pneumatic up-coiling, the operation is convenient.


Main Technical Parameters:

Model ACS-CD800
Max. Diameter Of Unwinding Roll (Mm) 1200mm
Max. Cutting Width(Mm) 800mm
Cutting length(mm) 600-1200mm
Cutting Precision(Mm) +-1
Production Capacity 30-60pcs/min
Gross Power 5kw
Installing Dimensions (L*W*H)(Mm) 6500*2500*1200mm
Weight (Kg) 2000kgs
Sewing unit Chinese best brand
Control system PLC and touch screen control
